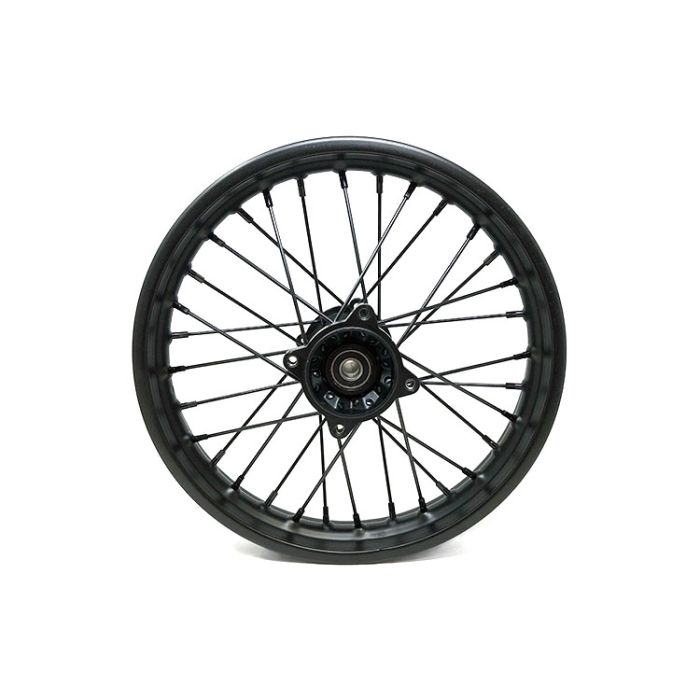

Axle - PITMOTO 14" x 1.85" Rear Dirt Bike Rim – 15mm – Fits TaoTao DB17 & Chinese Pit Bikes

PITMOTO 14" x 1.85" rear dirt bike rim.

Specifications

• with 15mm axle compatibility. Designed as a replacement rear wheel for the TaoTao DB17 and many Chinese pit bikes and dirt bikes using the same wheel and hub dimensions. Includes two installed bearings and an internal center spacer. Axle, sprocket and brake rotor are not included.
• Replace a bent, damaged or worn rear wheel with this PITMOTO 14" rear dirt bike rim. This spoked rear wheel features a 1.85" rim width, 15mm axle compatibility, 4-hole sprocket mounting and 4-hole disc brake rotor mounting.
• Brand: PITMOTO
• Position: Rear
• Rim Diameter: 14"
• Rim Width: 1.85"
• Axle Compatibility: 15mm
• Color: Black
• Sprocket Mount: 4-hole
• Disc Rotor Mount: 4-hole
• Hub mounting diameter: 75.5mm
• Mounting pattern: 4-hole
• Adjacent mounting-hole spacing: 65mm center-to-center
• Opposite/diagonal mounting-hole spacing: 92mm center-to-center
• Adjacent mounting-hole spacing: 70mm center-to-center
• Opposite/diagonal mounting-hole spacing: 100mm center-to-center
• Chinese dirt bike specifications can vary by model and production run. Before ordering, compare your original wheel's 14" x 1.85" rim size, 15mm axle diameter, hub mounting diameter and sprocket/rotor bolt-hole spacing with the measurements above.

Compatible With

• This rim is a known fit for the
• and may fit many other Chinese pit bikes and dirt bikes that use the same wheel and hub dimensions. Because specifications can vary between manufacturers, models and production runs, compare the measurements below with your original wheel before ordering.
• Known application includes the TaoTao DB17. This rim may also fit other Chinese 110cc, 125cc and similar dirt bikes and pit bikes that use matching dimensions. Engine size or brand name alone does not determine fitment.

Product Details

• TaoTao DB17
• 2 wheel bearings installed
• Internal center bearing spacer installed
• Axle not included
• Sprocket not included
• Brake rotor not included
